Fused R.C. Solutions
Includes:
- CR18P V3/V2 T-Hunter "Fused" battery over axle B.O.A Kit (Includes "Fused" Raised Body Mounts)
- CR18P V3/V2 T-Hunter High Clearance Front Bumper
- CR18P V3/V2 T-Hunter Electronics Relocation kit.
B.O.A. Kit
This BOA (Battery Over Axle) kit moves the weight of the battery right over the front axle.
Improves forward weight bias and helps gain traction.WAY more battery size options. We thought outside the "box". Mount the battery parallel OR perpendicular to the chassis.
Includes our mount to raise the body to allow room for the battery, which also gives you room for larger tires!
Reuses the oem magnet and hardware.
Battery is secured by velcro (included) and the light pressure of the body holds it firmly in place.

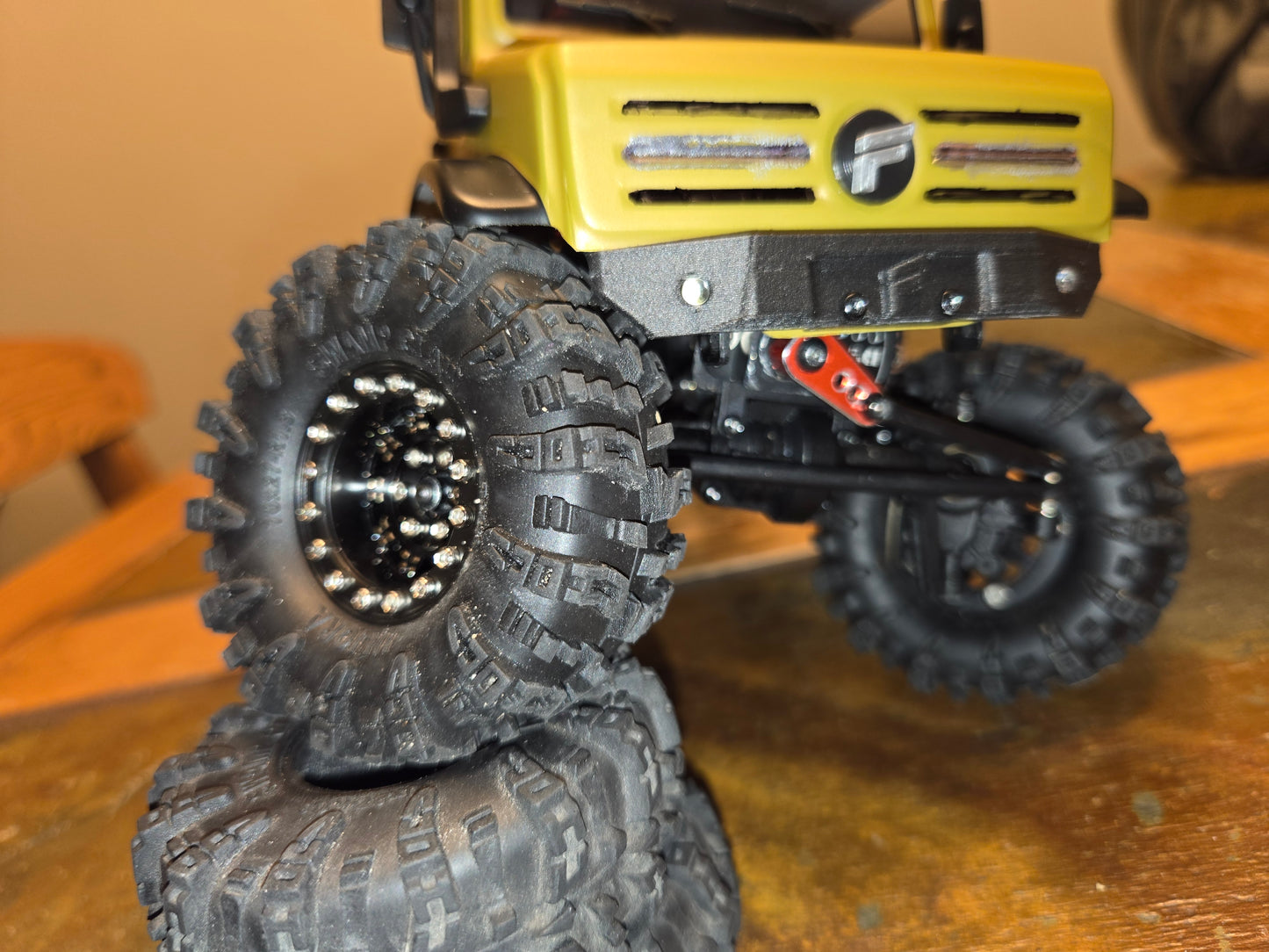

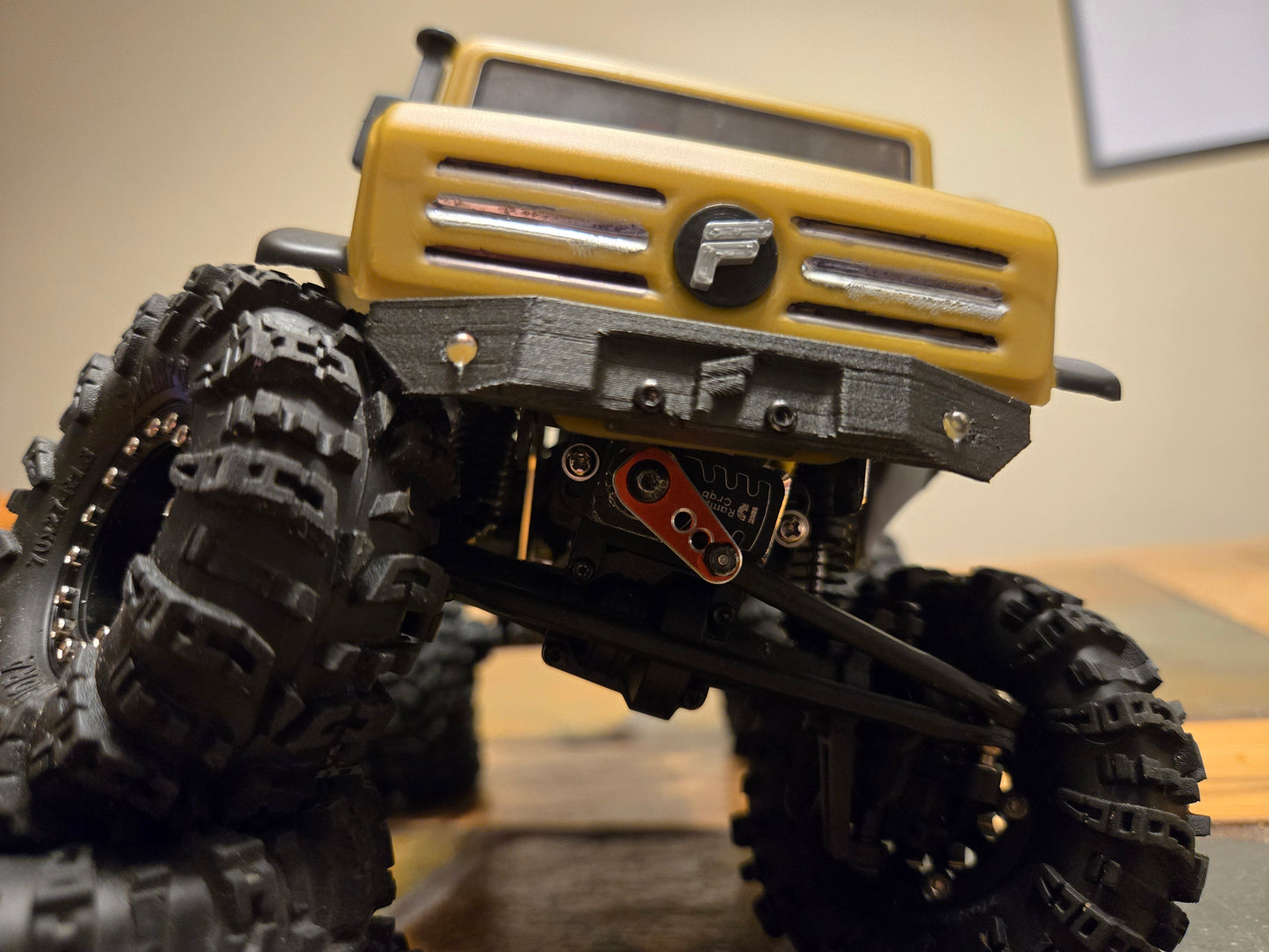

High Clearance Front Bumper
This allows you to run 70+mm tires with little to no rub!
Printed out of Carbon Fiber Nylon pa12cf
Includes "Fused" Bumper Emblem
Install-
Remove the stock receiver tray at the front, battery box in the bed if desired, and esc "tub".
Next remove magnet and install it into the new body mount. The body mount screws to the roll cage as pictured.
Trim the body mounts that aren't used on the front shock towers and install the new tray as pictured with the included velcro at your desired location parallel or perpendicular with the chassis.

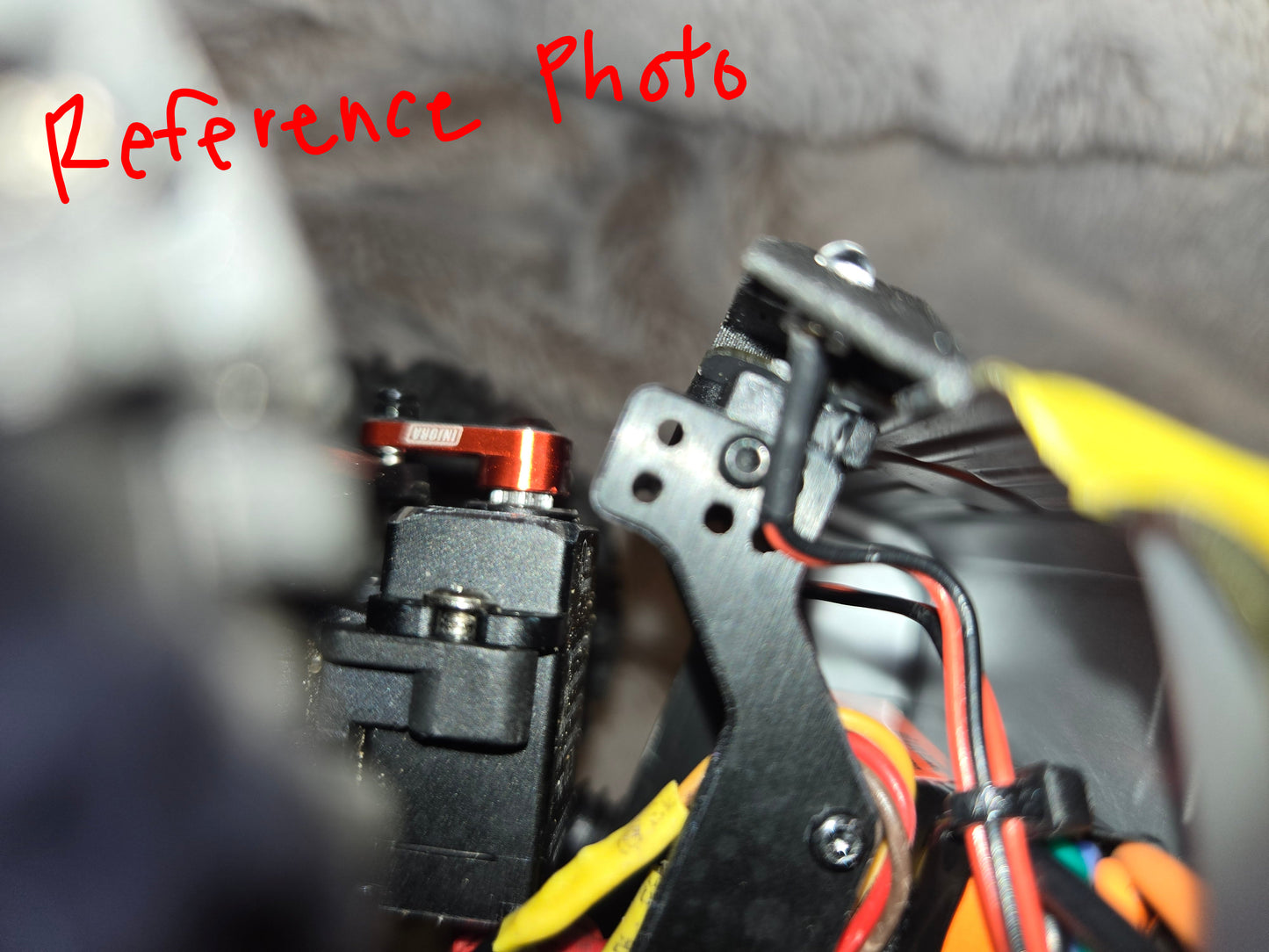

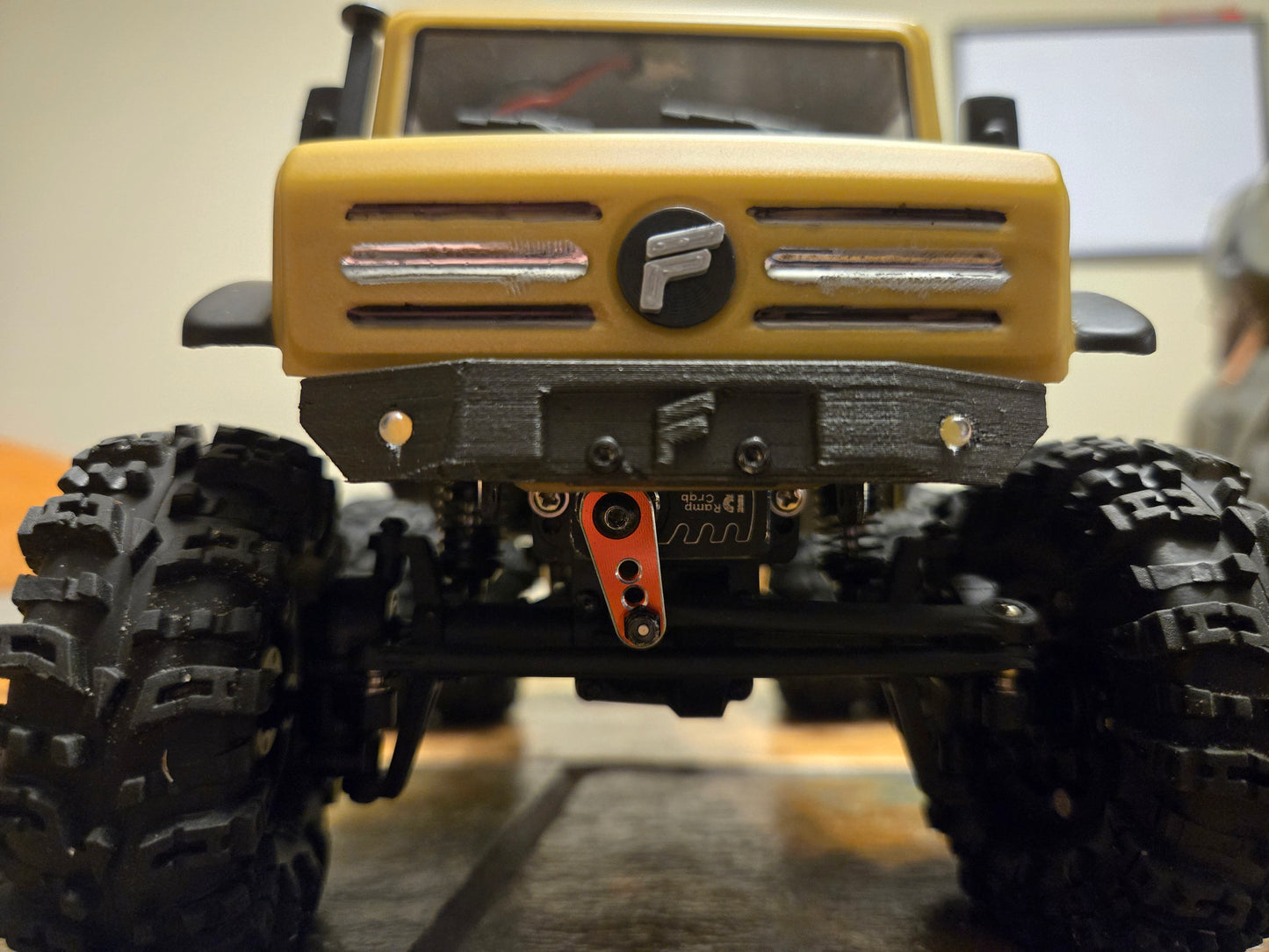

Front bumper installs the same as oem, easiest to remove the cab as we will be moving the mounting location on the front on hole up. push lights carefully into the new bumper and reroute the wires. Install in location pictured one hole up

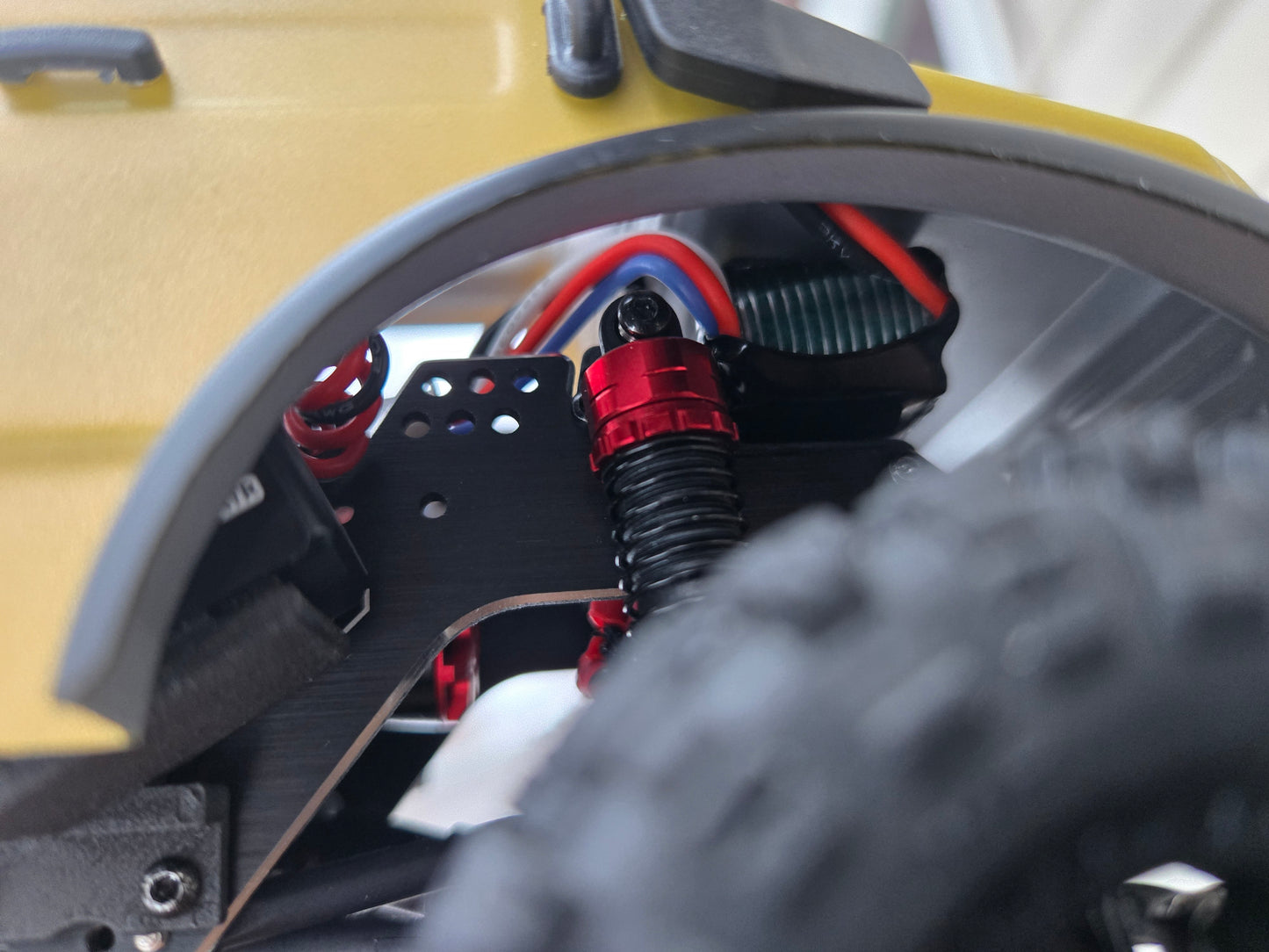

The electronics plates are installed with the four included screws, in the locations pictured. Ensure clearance with the RX and body.
